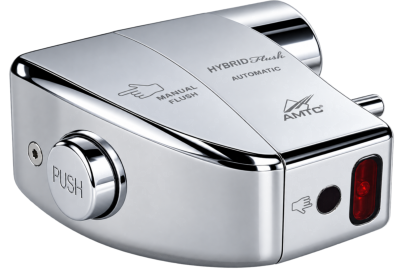

DESCRIPTION Battery Powered, Sensor Operated HYBRIDFLUSH ® HALF-FLUSH ® Side Mount Retrofit Conversion Kit for Exposed Urinal Flushometers.
FLUSH CYCLE Model HSM-801-RHF (Flushes 50% Less Water From Current Flushometer Flush Cycle)
FEATURES - Green Solution - Reduces Water Usage by 50% - Patented Gear Motor Drive - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated Metal Housing - Quiet Operation - Electronic Manual Flush Button (Front) - True Mechanical Manual Flush Button (Side) *Mechanical Button Works When Batteries are Drained - Operates on (4) “C” Alkaline Batteries (Included) - Battery Life - 3+ Years - “Low Battery” Blinking LED Indicator - Easy Battery Replacement-No Water Shut Off Necessary - Adjustable Sensor Distance - Optional Water Saver Mode - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Installation Tools Included - No External Volume Adjustment for Water Conservation
A D A C om plia nt
W a rra nty
5 Years
The HYBRIDFLUSH ® is a revolutionary full-featured automatic/manual flushometer. The HYBRIDFLUSH ® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH ® design allows for a push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH ® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
The HYBRIDFLUSH ® Advantage
Specifications - HSM-801-RHF
HSM-801-RHF Half-Flush Side Mount Automatic Flush Valve Retrofit Kit For Urinals
Retrofit Options Standard HYBRIDFLUSH ® HALF-FLUSH ® Side Mount can be used on AMTC flushometers as well as various flushometer models manufactured by Sloan ® , Zurn ® , and Helvex ® . - Model HSM-801-RHF-AS (Includes Adapter for American Standard Piston Flushometer) - Model HSM-801-RHF-SG (Includes Adapter for Sloan Gem Piston Flushometer)
AMTC Advanced Modern Technologies Corporation
