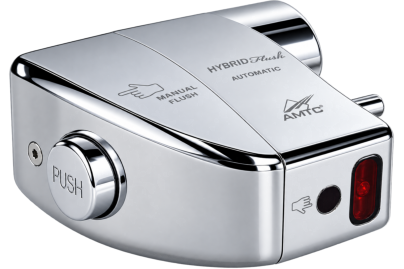

HSM-801-R HYBRIDFLUSH ® SIDE MOUNT AUTOMATIC RETROFIT FOR URINALS & WATER CLOSETS
DESCRIPTION Battery Powered, Sensor Operated HYBRIDFLUSH ® Side Mount Retrofit Conversion Kit for Exposed Urinal and Water Closet (Toilet) Flushometers.
FLUSH CYCLE Model HSM-801-R (Flush cycle is detemined by flushometer being used)
FEATURES - Patented Gear Motor Drive - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated Metal Housing - Quiet Operation - Electronic Manual Flush Button (Front) - True Mechanical Manual Flush Button (Side) *Mechanical Button Works When Batteries are Drained - Operates on (4) “C” Alkaline Batteries (Included) - Battery Life - 3+ Years - “Low Battery” Blinking LED Indicator - Easy Battery Replacement-No Water Shut Off Necessary - HARDWIRED VERSION AVAILABLE (HSM-801HW-R) - Adjustable Sensor Distance - Optional Water Saver Mode - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Installation Tools Included - No External Volume Adjustment for Water Conservation
TECHNICAL DOWNLOADS
Specifications - HSM-801-R - HSM-801HW-R - AMTCTRANS6VDC
Manuals - HSM-801 Installation & Operation - HSM-801HW Installation - HSM-801 Troubleshooting - HSM-801 Parts Diagram
Related Links - E-Catalog - Price List - Cross Reference Chart - Warranty Information
Technology - HSM-801 Advantages - Motor vs. Solenoid Technology

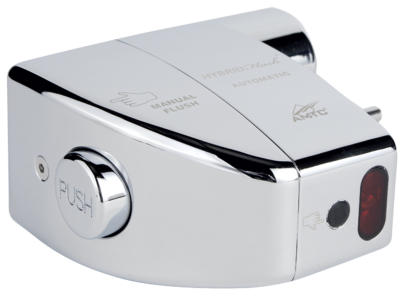

HSM-801-R Side Mount Automatic Flush Valve Retrofit Kit
Retrofit Options Standard HYBRIDFLUSH ® Side Mount can be used on AMTC flushometers as well as various flushometer models manufactured by Sloan ® , Zurn ® , and Helvex ® . - Model HSM-801-R-AS (Includes Adapter for American Standard Piston Flushometer) - Model HSM-801-R-SG (Includes Adapter for Sloan Gem Piston Flushometer)
Copyright © 2023 Advanced Modern Technologies Corporation. All rights reserved.
Products Water Closet (Toilet) Flush Valves Urinal Flush Valves Water Closet (Toilet) Combos Urinal Combos Faucets Soap & Sanitizer Dispensers Foam Soap Refills
Innovations BRV® Technology HEALTHFLO® Faucets FIXEDFLO® Faucets Automatic Janitor Flush Genie® Dual-Flush Handle Sanitation Cloud®
Resources E-Catalog Product Line Presentation Price List MasterSpec Files ARRA Compliance Cross Reference Chart BIM Files For Water Closets (Toilets) BIM Files For Urinals BIM Files For Faucets California Prop 65
Company About Us Markets We Serve Contact Us Video Library Press Room Blog
Follow Us
ADA Compliant Warranty 5 Years Listed By IAPMO
The HYBRIDFLUSH ® is a revolutionary full-featured automatic/manual flushometer. The HYBRIDFLUSH ® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH ® design allows for a push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH ® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
The HYBRIDFLUSH ® Advantage
