HSM101812U10 (1.0 gpf/3.8 Lpf) SIDE MOUNT AUTOMATIC LC HALF STALL URINAL FLUSH VALVE SYSTEM

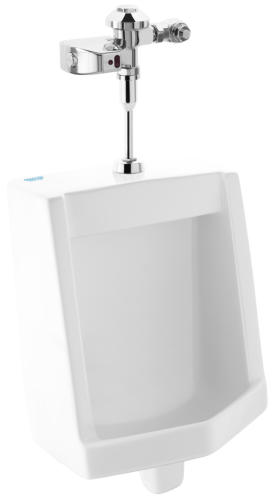

DESCRIPTION Battery Powered, Sensor Operated HYBRIDFLUSH ® Side Mount Complete LC System with Exposed Automatic Urinal Flushometer and Vitreous China Fixture.
FLUSH CYCLE Model HSM101812U10 (1.0 gpf/3.8 Lpf) Low Consumption
FLUSHOMETER SPECIFICATION (HSM-801-CU-10) - Patented Gear Motor Drive - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated Metal Housing - Quiet Operation - Electronic Manual Flush Button (Front) - True Mechanical Manual Flush Button (Side) *Mechanical Button Works When Batteries are Drained - Operates on (4) “C” Alkaline Batteries (Included) - Battery Life - 3+ Years - “Low Battery” Blinking LED Indicator - Easy Battery Replacement-No Water Shut Off Necessary - Adjustable Sensor Distance - Optional Water Saver Mode - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Uses Proprietary Silicone Diaphragm with Filtered Bypass - 3/4” I.P.S. Angle Stop - Adjustable Tailpiece - High Back Pressure Vacuum Breaker with Single Piece Hex Coupling Nut - Spud Coupling and Flange for 3/4” Top Spud - Sweat Solder Kit and Wall Flange with Set Screw - Low Consumption For Water Conservation
CODE COMPLIANCE (LISTED BY IAPMO) - ASSE 1037-2015 - ASME A112.1035-2015 - CSA B125.37-15
W a rra nty
5 Years
L iste d
By
I APM O
TECHNICAL DOWNLOADS
Specifications -HSM101812U10
FIXTURE SPECIFICATION (AUU-1018-12) - Complies with ADA Accessible Standards - White Color - Wall Hung Vitreous China - Washout Flushing Action - Extended Privacy Shields - Elongated Rim - Integral Flushing Rim - Integral Trap - 3/4” (19mm) I.P.S. Top Spud Inlet (Included) - 2” (50mm) NPT Outlet Flange (Included) - 100% Factory Tested - Hanging Bracket (2 included)
CODE COMPLIANCE (LISTED BY ICC-ES) - ASME A112.19.2-2013 - CSA B45.1-13
PLUMBING SYSTEM REQUIREMENTS - Minimum Flowing Pressure: 25 PSI - Maximum Static Pressure: 80 PSI - Minimum Flow Rate: 25 GPM
A D A C om plia nt
