AEF1012T16DF
(1.6 gpf/6.0 Lpf and 1.1 gpf/4.2 Lpf) DUAL-FLUSH
FLOOR MOUNT HET AUTOMATIC FLUSH VALVE SYSTEM
DESCRIPTION
Battery Powered, Sensor Operated HYBRIDFLUSH
®
Top Mount

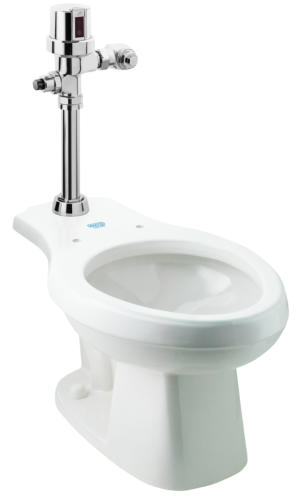

Complete DUAL-FLUSH System with Exposed Automatic
Water Closet Flushometer and Vitreous China Fixture.
FLUSH CYCLES
Model AEF1012T16DF (1.6 gpf/6.0 Lpf and 1.1 gpf/ 4.2Lpf) High Efficiency
FLUSHOMETER SPECIFICATION (AEF-801DF-CT-16)
- User present for less than 60 seconds initiates a reduced
flush (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste
- User present for more than 60 seconds initiates a full flush
(1.6 gpf/6.0 Lpf) eliminating solid and paper waste
- Reduced flush consumes up to 30% less water
- Patented BRV
®
and Gear Motor Drive
- Hands Free Infrared Sensor Activation
- Vandal and Water Resistant Design
- Chrome Plated All Metal Housing
- Quiet Operation
- True Mechanical Override (Side)
*Mechanical Button/Handle Works When Batteries are Drained
- Operates on (4) “AA” Alkaline Batteries (Included)
- Battery Life - 3+ Years
- “Low Battery” Blinking LED Indicator
- Easy Battery Replacement-No Water Shut Off Necessary
- Adjustable Sensor Angle
- Adjustable Sensor Distance
- Optional Three (3) Second Flush Delay Mode
- Optional 24-Hour Flush Mode
- Uses Proprietary Silicone Diaphragm with Filtered Bypass
- 1” I.P.S. Angle Stop
- Adjustable Tailpiece
- High Back Pressure Vacuum Breaker with Single Piece
Hex Coupling Nut
- Spud Coupling and Flange for 1 ½” Top Spud
- Sweat Solder Kit and Wall Flange with Set Screw
- High Efficiency For Water Conservation
CODE COMPLIANCE (LISTED BY IAPMO)
- ASSE 1037-2015
- ASME A112.1035-2015
- CSA B125.37-15
W
a
rra
nty
5 Years
L
iste
d
By
I
APM
O
TECHNICAL DOWNLOADS
Specifications
- AEF1012T16DF
FIXTURE SPECIFICATION (AUT-1012)
- White Color
- Vitreous China
- Floor Mount Water Closet Bowl
- Elongated Rim
- 10” (254mm) Rough-In
- 1-1/2” (38mm) I.P.S. Top Spud Inlet
- 2” (50mm) Fully Glazed Trapway
- 11” (279mm) x 13” (330mm) Water Surface Area
- Direct Feed Jet
- 100% Factory Tested
- Toilet Seat Not Included
CODE COMPLIANCE (LISTED BY ICC-ES)
- ASME A112.19.2-2013
- CSA B45.1-13
PLUMBING SYSTEM REQUIREMENTS
- Minimum Flowing Pressure: 25 PSI
- Maximum Static Pressure: 80 PSI
- Minimum Flow Rate: 25 GPM
