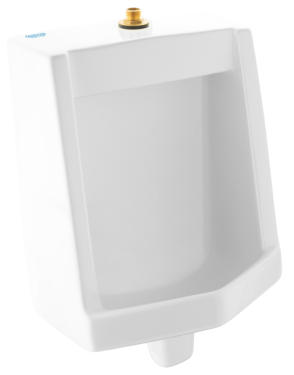

AUU-1018-12 ULTRA HIGH EFFICIENCY HALF STALL TOP SPUD WASHOUT URINAL
DESCRIPTION Ultra High Efficiency Half Stall Top Spud Washout Urinal
MODELS AVAILABLE (FLUSH CYCLES) - 0.125 gpf to 1.0 gpf / 0.5 Lpf to 3.8 Lpf - Flush volume is determined by flushometer used with urinal
FEATURES - Complies with ADA Accessible Standards - White Color - Wall Hung Vitreous China - Washout Flushing Action - Extended Privacy Shields - Elongated Rim - Integral Flushing Rim - Integral Trap - 3/4” (19mm) I.P.S. Top Spud Inlet (Included) - 2” (50mm) NPT Outlet Flange (Included) - 100% Factory Tested - Hanging Bracket (2 Included) - Flushometer Not Included
CODE COMPLIANCE (LISTED BY ICC-ES) - ASME A112.19.2 - CSA B45.1-13 ADA- With installation consideration for “Section 605, Urinals” of the ADA 2010 Standard. - ICC/ANSI A117.1 - EPA WaterSense
W a rra nty
1 Year
TECHNICAL DOWNLOADS
Specifications - AUU-1018-12
Technology
PLUMBING SYSTEM REQUIREMENTS - Minimum Flowing Pressure: 25 PSI - Maximum Static Pressure: 80 PSI - Minimum Flow Rate: 25 GPM
A D A C om plia nt
