AEF-801DF-CRT HYBRIDFLUSH ® DUAL-FLUSH (1.6 gpf/6.0 Lpf) AND (1.1 gpf/4.2 Lpf) TOP MOUNT AUTOMATIC RETROFIT FOR CONCEALED WATER CLOSET FLUSHOMETER

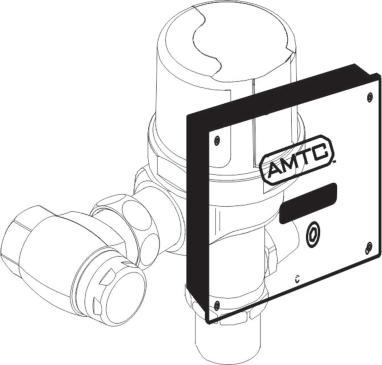

DESCRIPTION Hardwired, Sensor Operated HYBRIDFLUSH ® Top Mount Dual-Flush Retrofit Conversion Kit for Concealed Water Closet (Toilet) Flushometers.
FLUSH CYCLES Model AEF-801DF-CRT-16 (1.6 gpf/6.0 Lpf and 1.1 gpf/4.2 Lpf) High Efficiency
FEATURES - User present for less than 60 seconds initiates a reduced flush (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste - User present for more than 60 seconds initiates a full flush (1.6 gpf/6.0 Lpf) eliminating solid and paper waste - Reduced flush consumes up to 30% less water - Patented BRV ® and Gear Motor Drive - Wall Mounted Plate with Sensor - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated All Metal Housing - Quiet Operation - Electronic Flush Button - Operates on 6-Volt DC Power (Transformer Sold Separately) - Adjustable Sensor Distance - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Uses Proprietary Silicone Diaphragm with Filtered Bypass
A D A C om plia nt
W a rra nty
5 Years
The HYBRIDFLUSH ® Advantage
RETROFIT OPTIONS - S Retrofit for Sloan ® Valve Bodies - Z Retrofit for Zurn ® Valve Bodies
The HYBRIDFLUSH ® is a revolutionary full-featured automatic/manual flushometer. The patented HYBRIDFLUSH ® design allows for a push button to be used as an alternate flush option. The HYBRIDFLUSH ® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
*AEF-801DF-CRT units DO NOT include a Valve Body, Supply Stop or Vacuum Breaker.
TECHNICAL DOWNLOADS
