OPTIONAL ADAPTER FOR AC OPERATION

The AEF-301 can be powered by an optional AC Adapter.  When the AC power is used,  the batteries will work as a backup to an electrical power failure



AEF-301'S HIGHLIGHTS

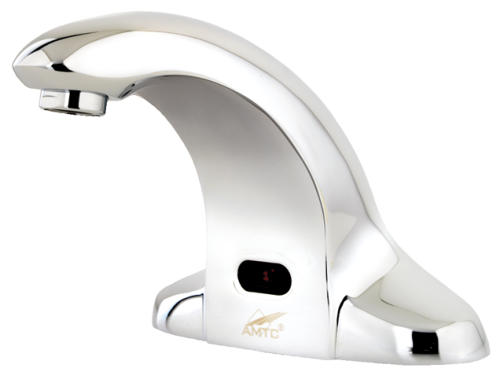

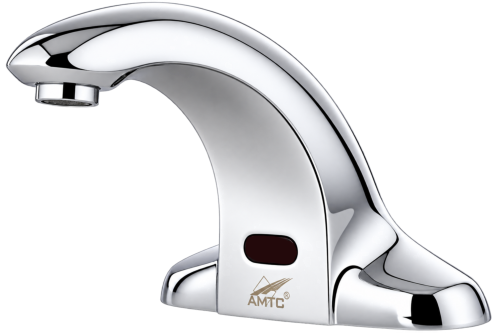

The AEF-301 is AMTC'S most advanced automatic faucet.  The AEF-301's spout is made of solid brass that comes standard in chrome.  The AEF-301 also comes in a variation of finishes to enhance any environment.

Cost Effective way to Retrofit your Facility

The AEF-301 helps to greatly reduce the amount of water that is wasted while the user washes his/her hands in a public facility.

Additional Finishes Available:

AEF-301PB Polished Brass



AEF-301BC Black Chrome



AEF-301PG Polished Gold



AEF-301BN Brushed Nickel AEF-301AC Antique Copper AEF-301AB Antique Brass


KEY FEATURES:

  • Infrared sensor operated automatic faucet

  • Uses a unique patented BRV® and motor drive mechanism that eliminates the use of a solenoid

  • Easily replaces your existing faucet

  • Comes standard for single line tempered water applications or use TMV for hot/cold water mixing requirements

  • Mounting options include one hole, three hole 4" center-set,  or three hole 8" center-set

  • Includes a high quality solid brass spout

  • Digital sensor range adjustment

  • Operates on four(4) C cell batteries up to 400,000 cycles

  • Easy battery replacement-no water shut off necessary

  • Optional 6 Volt AC plug-in adapter for electrical operation (sold separately)

  • 50 second continuous running time with automatic shut-off

  • Built-in cleanable filtering system

  • 3 Year Warranty on electronic faucet





Single Line Connection (Cold or Tempered Water)

Hot/Cold Connection using Thermostatic Mixing Valve (TMV)






Model: AEF-301
Spout: Solid Brass Spout
Spout Mounting: 1or 3 Hole Applications
Battery Type: 4 x C Cell Batteries
  Optional AC Plug-In Adapter
Battery Life: Up to 400,000 Cycles
Working Water Pressure: 10-114 PSI
Supply Inlet Size: 1/2" Supply Inlet
Temperature Control: No (TMV may be used to set water temperature)
Pop-Up Drain Rod: None
Sensor Location: Neck of Spout
Sensor Range Setting: Digital Push Button
Sensing Range: 2"(55mm) - 6"(150mm)
Response Time: 0.5 Second
Shut-Off Delay Time: 2 Seconds
Automatic Shut-Off Time: 50 Seconds
Low Battery Indicator: Solid Red Light on Sensor
Warranty: 3 Years



Additional Links For the AEF-301 Automatic Faucet:



AEF-301 Color Brochure

AEF-301 Instruction and Installation Manual

AEF-301 Specification Page
